VACUUM MEMBRANE PRESS SINGLE TABLE

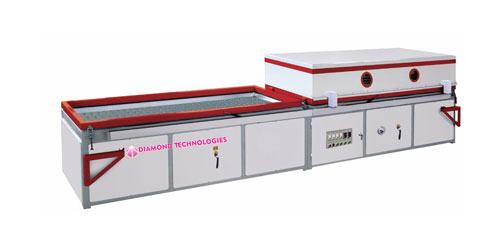

Vacuum Membrane Press Single Table

title

Main feature:


  1. There is one removable working table ,strong steel frame and durable, save rooms.
  2. Aluminium heating system (it is new technology, it will give equal heating of full table)and it adapts the automatic control panel, which makes the degree setting easily.
  3. vacuum pump working efficiently which makes high quality products.
  4. It is the best choose for the non-painting door &cabinet door to laminate the pvc within 0.5mm.
  5. One year warranty and also IR heating system available

Technical data:


Work table size Vacuum pressure Vacuum motor power Consume power Total power Overall size Net weight
2500*1120*60mm -0.07MPa--0.1MPa 3.0kw 4.5kw 18kw 5750*1700*1500mm 1000kg
