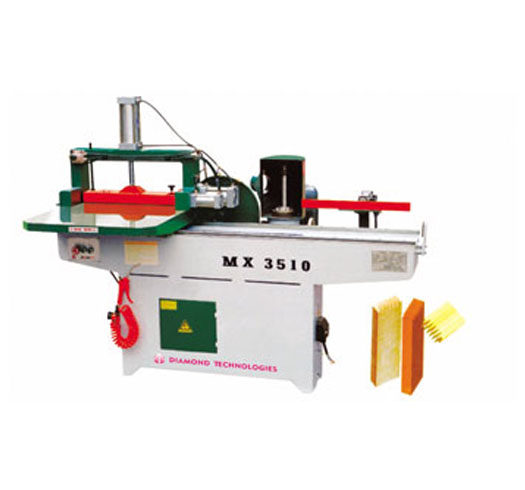

Finger Joint Cutting Machine

⇨ Max. Working width - 330mm
⇨ Max.Working TThickness - 120mm
⇨ Outsidde Dia.of Cutter Spindle - 35/50mm
⇨ Diameter of cutter spindle - 305mm
⇨ Rottationspeed ofmain spindle - 6000rpm
⇨ Dimension ofworking table - 640x500mm
⇨ Install Power - 9.7kw
⇨ Overall dimension - 1500x1300x1300mm
⇨ Weight - 650kg

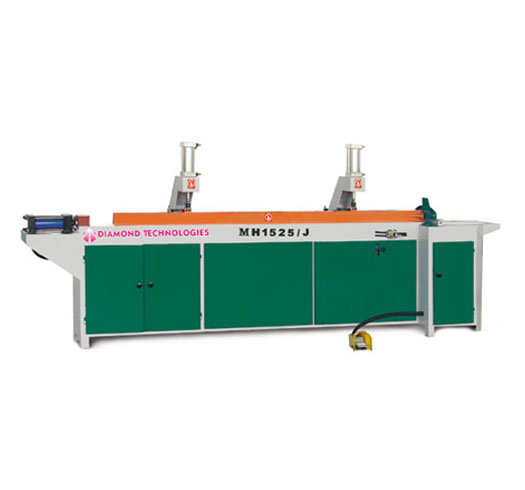

Finger Joint Assembly Unit

⇨ Max. Working lenth - 2500mm
⇨ Max.Working Width - 120mm
⇨ Max.Working thickness - 70mm
⇨ Max.Working power - 8000kg
⇨ Diameter of saw blade - 305mm
⇨ Install Power - 3.3kw
